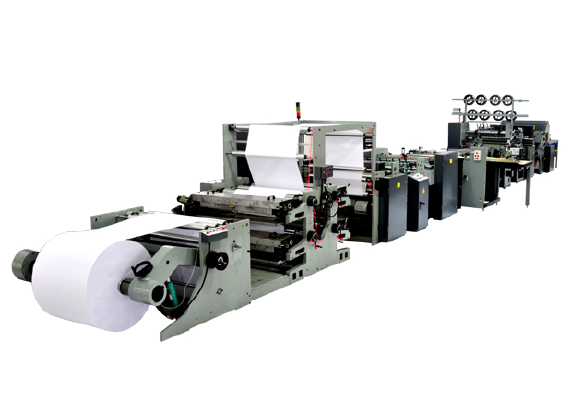

Web speed flexo wire saddle Production Line

Web speed flexo wire saddle Production Line

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Chinese port
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-04-22
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  20400*3250*2500mm3
  • Place of Origin:  JINHUA
  • Brand Name:  GAOBO
  • Model Number:  GB-1020 Web
  • Weight: 17000.000 kg

The machine adopts microcomputer control, photoelectric tracking, gas-liquid interaction, human-machine interface touch screen operation, and other high-tech ink flexographic printing, flexographic printing ink environmentally friendly and science. The production line is linked web unwinding, the high-speed flexographic printing, slitting, the number of pages, with cover, stitching, folding, flat back, cross-cutting, slitting eleven steps to close this organically combined, the industry is thin nails of the ideal mass production line.

  • Size:  20400*3250*2500mm3
  • Place of Origin:  JINHUA
  • Brand Name:  GAOBO
  • Model Number:  GB-1020 Web
  • Weight: 17000.000 kg

The main technical parameters




product model

web width

max. printing speed

repeat range

cutting length

counting & collecting

max. reel paper diameter

sheet weight

notebook width

cover weight

max. output frequency

sheet stitching thickness

total power

overall dimensions (LxWxH)

machine weight



GB-1020

580-1020mm

240m/min

300-670mm

300-670mm

5-50sheets

1200mm

45-120g

130-225mm

80-300g

40-150g

45Times

8mm

30KW

20400 X 3250 x 2500mm3 17T
