- Size: 15500x8350x2300mm3
- Place of Origin: JINHUA
- Brand Name: GAOBO
- Model Number: GB-GNB 670
- Weight: 25000.000 kg

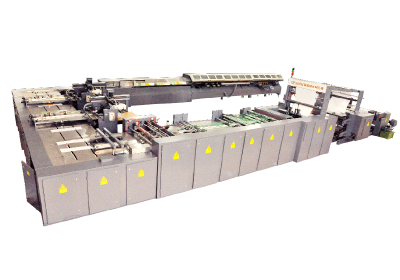

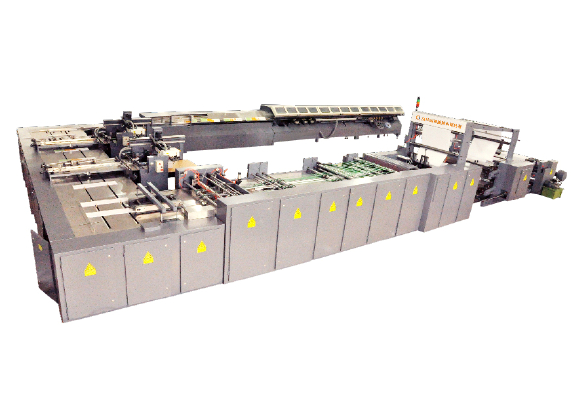

The machine adopts microcomputer control, photoelectric tracking, gas-liquid interaction, human-machine interface touch screen operation, flexographic printing ink and other high-tech. Flexographic printing ink environmentally friendly and science. The production line is linked web unwinding, unwinding after a high speed flexographic printing, vertical line, split, folding, horizontal cut, the number of page stack of paper, distribution back cover, cover, flip, gluing, drying, wrap dorsal stripe, to close this, and other fifteen steps cut into the organic combination, is Buben industry wireless glue binding this production the best equipment.
- Size: 15500x8350x2300mm3
- Place of Origin: JINHUA
- Brand Name: GAOBO
- Model Number: GB-GNB 670
- Weight: 25000.000 kg
The main technical parameters
product model: web width : Max. back tape book binding thickness Back tape book binding distance: max.printing speed; back tape book binding width: repeat range : Output book speed: Max. cutting width: Dry temperature range: counting & collecting : total power: max.reel paper diameter: The total power: sheet weight: Size: notebook width : machine weigh: cover weight range : | GB-GNB670 580-1020mm 4~12mm 40-60mm 250m/min 20~35mm 300~670mm 25m/min 300~670mm 0-400 ℃ 5~50张 30kw ϕ1200mm 45 kw 45~180g/m2 15500x8350x2300 130~300mm about25000kg 80~400g/m2 |
