- Size: 2200 x 1000 x 1300mm3
- Place of Origin: JINHUA
- Brand Name: GAOBO
- Model Number: GB-420B
- Weight: 800.000 kg

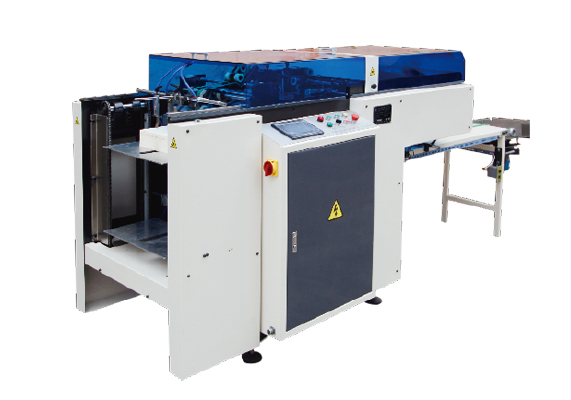

GB-420B automatic punching machine is a paper cardboard punching special equipment, mainly used for calendars, calendar, notebook in this book, exercise books, gray cardboard, PP binding with blanking plates, etc., can not be used for metal and other Items punching.
The machine uses stepper drive on paper, adjustable thickness, gripper head after taking lessons cardboard paper and nozzle through the conveyor belt into the punching die, then three sides and adjust the paper alignment after punching, punching after the end of the paper automatically enter income in accordance with the order paper, paper size and margins can be adjusted by replacing the punching die can punching holes of various shapes.
- Size: 2200 x 1000 x 1300mm3
- Place of Origin: JINHUA
- Brand Name: GAOBO
- Model Number: GB-420B
- Weight: 800.000 kg
The main technical parameters
Max.Punching size for cover Min.Punching size for cover Max. Punching range for inner-sheet、PP Plate Min. Punching range for inner-sheet、PP Plate Max.Punching thickness Max.Paper stack height Max.Working speed (inner sheet) Max.Working speed (cover) Paper Specification Power Machine Dimension (Length x Width x Height) Machine Weight Air Compressor (Excluded) Air Compressed | 285 x 285mm 148 x 120mm 420 x 420mm 120 x 120mm 2mm 600mm 4800-7200次/小日寸 Times / Hour 1800-6000次/小时 Times / Hour 50-250g/m2 AC380V/3ph/50Hz/3kw 2200 x 1000 x 1300mm 800kg 0.37kw 4-6bar
|
Note: No requirement of blowing assist for papers under 150g/m2
